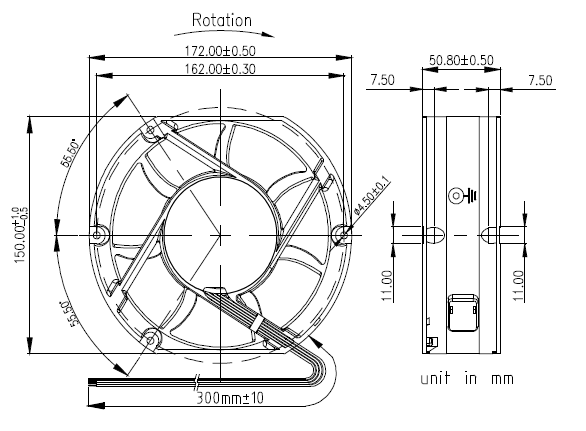

- Frame Size [mm]: 172
The frame size of this fan/motor is 172 millimeters, making it versatile for installation in a range of environments, even in space-constrained applications, while delivering excellent performance. - Rated Voltage [V]: 48V
Designed for a rated voltage of 48V, this unit operates efficiently with standard 48V power supply systems, ensuring stable and consistent performance across various industrial settings. - Rated Current [A]: 2.40A
The rated current of this fan/motor is 2.40 amps under normal operating conditions, providing optimal power consumption and ensuring stable, efficient operation. - Rated Input Power [W]: 115.20W
With a rated input power of 115.20 watts, this unit is highly energy-efficient and can sustain long periods of stable operation, adapting well to varying load conditions. - Rotational Speed [R.P.M]: 5500 ± 10％
The motor operates at a speed of 5500 revolutions per minute (RPM), with a tolerance of ±10％, meaning the speed can range from 4950 to 6050 RPM, depending on system requirements. - Max Airflow [CFM]: 428.04 CFM
With a maximum airflow of 428.04 cubic feet per minute (CFM), this fan delivers efficient air circulation, making it ideal for high-airflow applications like cooling systems or ventilation units. - PWM Control Function
Equipped with Pulse Width Modulation (PWM) control, this fan/motor allows precise speed adjustments, enabling flexible control over airflow and power consumption for enhanced efficiency and performance.

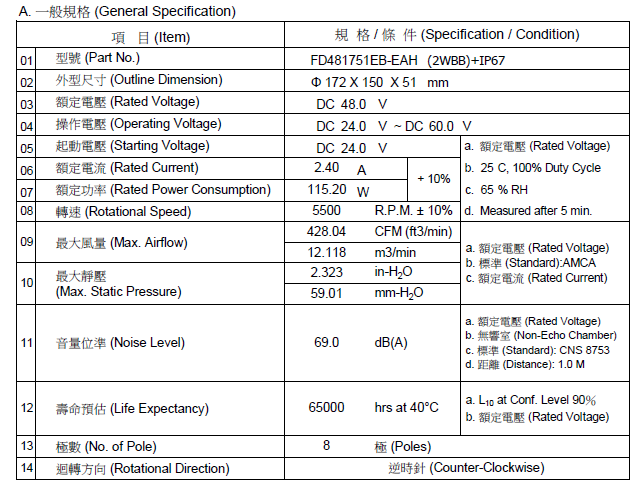

Refer to the datasheet: FD481751EB-EAH
